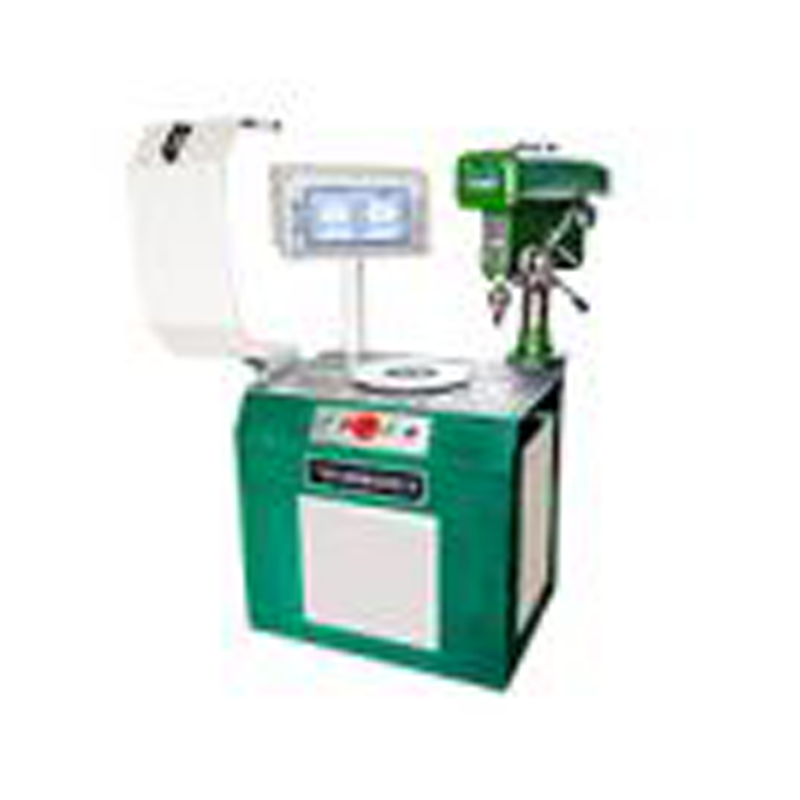

YD-16(XZ) Single-sided vertical balancing machine
YD-16(XZ) Single-sided vertical balancing machine
key word:
- Description
- Image display
- Product parameters
- Customer site
- Troubleshooting
-
Product features
Keep Improving Pursue Perfection
Set many advantages in one, only to give customers the perfect dynamic balance detection, so that customers feel more at ease
It can be equipped with the deweighting device
according to the user's requirement
It has simple operation and convenient loading
and unloading
Equipped with special fixture, higher precision
Because of professional, so trust
Technical parameters
The structural parameters
65cm
45cm
0.05/0.4servo
Gauge,
And the number
Workpiece quality
range(kg)
16
Maximum outside diam
eter of workpiece (mm)
Φ600
Motor power (KW)
Workpiece height (mm)
120
Imbalance reduction
rate (U RR) %
Minimum reachable res
idual unbalance (E mar)
95%
≦2g.mm/kg
The basic informationProduct parameters
Higher efficiency
Vulnerable
artifacts:
One year warranty for mechanical parts, one year warranty for
electrical parts, one year warranty for electronic components
Replacement of all kinds of idle old, old and residual dynamic balancing
machine equipment purchased by the enterprise in the early stage,
replacement scheme is determined according to the actual field
investigation results;
The prophase purchase of zhuoxuanjin dynamic balancing machine
equipment due to idle, and there are new products need to re-purchase
dynamic balancing machine, can consider the way of exchange
cooperation;
Home delivery, free arrangements for personnel home transfer
and training guidance;
Professional after-sales staff 24 hours telephone video voice
guidance sudden operation change and forget to operate and
other problems
Equipment lifetime maintenance, wearing parts to provide
lasting, so that the use of equipment more assured
The workpiece speed range is in:1000-3500 3500-8500
8500-30000
Production demand: large variety quantity, small variety
quantity and small variety quantity;
Product industry, varieties, specifications, weight, shape, size;
Balance
correction:
Feeding (adding mud, clamping, ring,welding,... )
Cutting (cutting, drilling, milling, grinding,planing,
scraping,... )
Balance levels range fromG40、G16、G6.3、G2.5、G1、G0.4
The initial measurement is qualified and the number of thick
grooves in the outer diameter of the rotor is measured
Member's Rights
1、Date Of Delivery
Normal production period is 6 working days (can be booked in advance)
2、Payment Method
Down payment deposit to arrange production
3、Quality Criterion
1.Product manufacturing standardGB4201-2006/ISO2953:1999
2.The product manufacturing requirements shall be strictly in accordancewith the technical requirements determined by both parties
4、Guarantee Period
The "three guarantees" period of party b's products shall be one year, and
after-sales service shall still be provided one year later.
5、Product Acceptance
1.Check and accept the equipment in the supplier's workshop. Check and verify
the rotor test.
2.The equipment shall be inspected and accepted by the user on site. The inspectionshall be carried out in accordance with the technologies determined by both parties
in the early stage, and the basic operation training shall be completed.
6、After-Sales Service
1.The supplier is responsible for providing training services for the equipment ordered bythe
purchaser, such as operation balance calculation and troubleshooting.
2.In case of equipment failure, the company will support the response in the fastest way afterreceiving the notification from the user.The arrival time shall not exceed 48 hours, andthe
maintenance work shall be carried out (after that. If the equipment is in the period of three
guarantees, only the transportation fee for the personnel shall be charged, and the travel
expense for the personnel shall be charged, and the cost fee for the replacement of the
accessories shall be charged).
3.The company is responsible for the maintenance of equipment after three packagesandprovide spare parts supply services.
-
Specification
Parameter
Workpiece mass range (kg)
16
Maximum outer diameter of the workpiece (mm)
Φ600
Motor power (KW)
0.05/0.4servo
Workpiece height (mm)
120
Minimum reachable residual imbalance (E mar)
≦2g.mm/kg
Unbalance reduction rate (U RR)%
95%
